2023 Brooks Bro Slrt 7108 SLRT 7108 For Sale Fort Wayne, IN

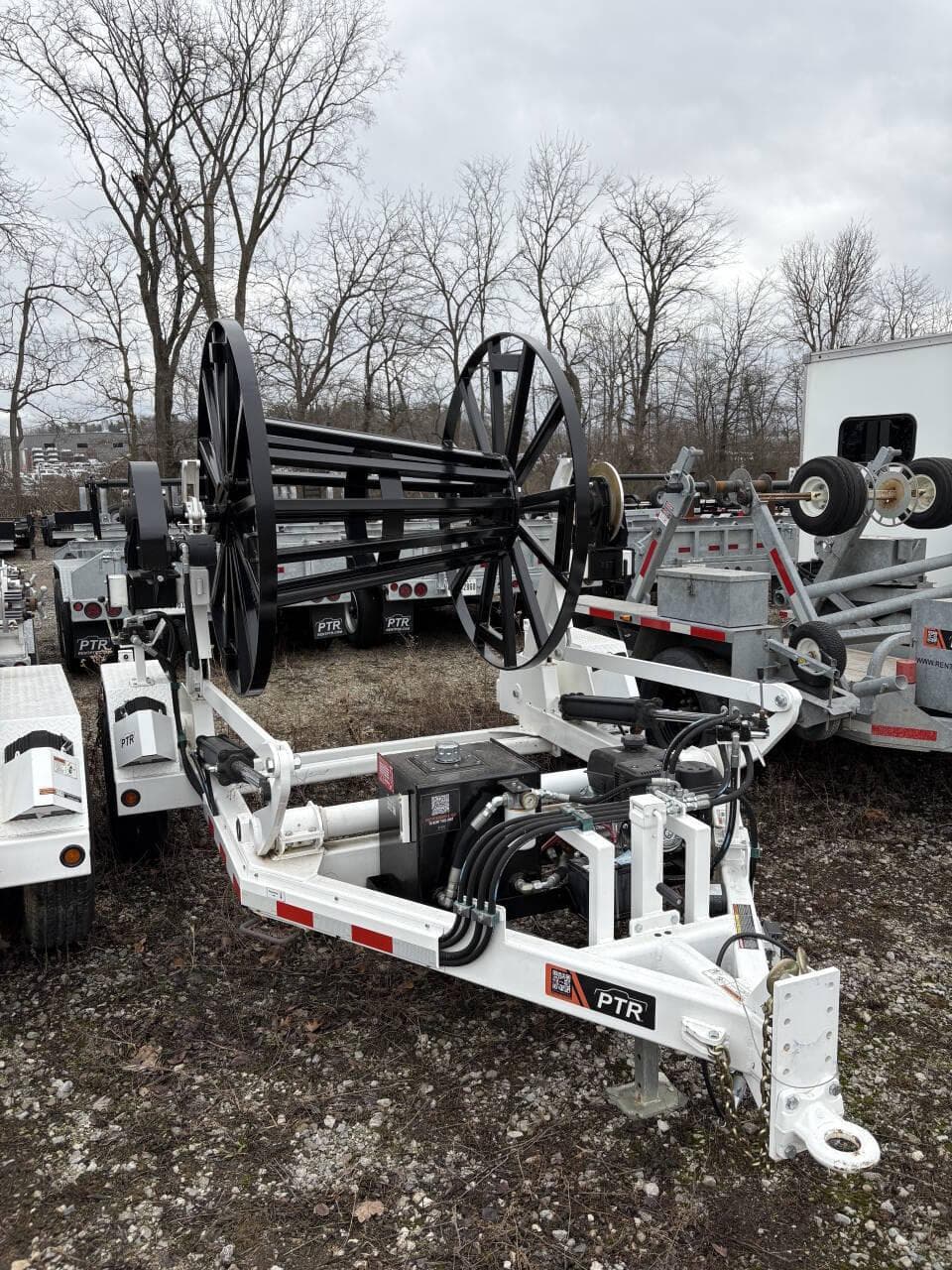

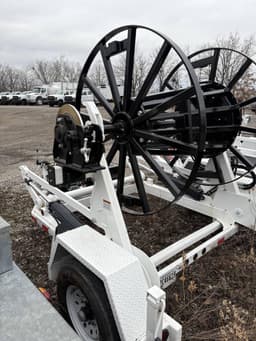

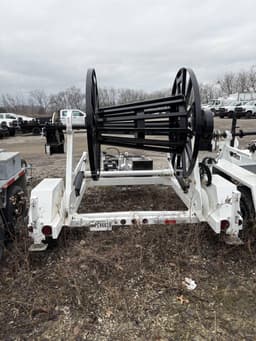

Brooks Brothers SLRT 7108 Self‑Loading Reel Trailer VIN: 7K7US0817PM000487 GVWR: 8,200 lb (15% weight transfer calculation) Approx. Load Capacity: 5,000 lb Overall Length: 134 Overall Width: 101 max Reel Capacity: One large reel — 96 diameter x 60 width, 3 center hole Reel Rack & Lift System: -Self‑loading design -Twin 4 hydraulic lift cylinders -Operated via lever‑activated control valve -Bronze heavy‑duty bushings AXLE & RUNNING GEAR -7,000 lb Torflex single axle -Electric brakes: 12 x 2 on all wheels -Tires: (2) 235/80R16 Load Range E -Wheels: (2) 16 x 6, 8‑hole on 6.5 bolt circle POWER PACK (HYDRAULIC SYSTEM) Engine & Hydraulic Specs: -14 HP Kohler gas engine -Electric start + recoil backup -20‑gallon hydraulic reservoir -10‑micron spin‑on filter -Hydraulic pressure ratings: -2,250 psi continuous -2,900 psi intermittent -Flow rate: 8 GPM TENSIONING BRAKE ASSEMBLY -16 x 3/4 aluminum brake disc -Hub, shaft, and disc machined as one unit -Hayes M100 caliper — 10,000 lb clamping force -Non‑asbestos pads (easy replacement) -Up to 4,100 ft‑lb torque -Heavy‑duty bearings TONGUE, HITCH & JACKS -Steel tubing: 6 x 3 x 3/16 -Adjustable hitch plate: 6‑position (14–27) -2.5 Lunette eye -Chains: 3/8 x 36, galvanized Jacks: -(1) front 10,000‑lb drop‑leg jack -(2) rear stabilizer jacks MAIN FRAME & STRUCTURE -Main frame: 6 x 4 x 1/4 steel tube -Lifting arms: 6 x 3 x 1/4 steel tube 12‑VOLT ELECTRICAL SYSTEM -DOT/ICC compliant LED lighting -Rubber‑mounted sealed beam stop/turn/tail/marker lights -SO‑cable wiring loom (clamped every 16 with rubber‑lined clamps) -All wiring soldered, heat‑shrunk, and terminated in junction boxes -32 pigtail w/ electrical plug at junction box Located in Indiana, Nationwide shipping available
